IRTrans LAN Controller XL

•  Case: Black case. 230x130x62 mm.
•  ATMega64. 64K Atmel Microcontroller to control the IR functions of the device
•  Freescale MC9S12NE64. 64K Freescale LAN Microcontroller handling the TCP/IP stack
•  LAN Interface: 10/100 BaseT Ethernetinterface. (10/100MBit)
•  Infrared <–> IP Gateway: All Ethernet based IRTrans Modules can be used as an IR <–> IP Gateway. This allows to transfer IR Commands via all kinds of IP based networks. Of course that can be done without any additional systems or software.
•  IR Database: The LAN Controller has an integrated 128K IR Database for about 1000-1500 commands. The database can be filled with a selection of IR Commands using the PC software. These commands can then be sent using simple TCP or UDP commands.
•  New: 128KB Flashs memory for HTML pages: The LAN Controller XL has got additional memory for user web pages. These Web pages are then available through the integrated web server of the LAN Controller XL. That way remote controls can be implemented using HTML pages stored inside the device !
•  New: RS232 Interface: The LAN Controller XL contains a bidirectional RS232 interface. Via that interface IR Codes can be sent. Furthermore predefined data blocks can be sent via RS232 when certain IR Codes are received. In addition RS232 datablocks can be sent by IRTrans clients.
•  New: IR Receiver Inputs: Instead of the 2 integrated IR Receiver (38 kHz +Universal) an externernal IR Receiver for each freqency can be connected. The internal receivers will then be disabled via builtin jumpers.
•  New: Real Time Clock + Timer: The modules include a NTP based real-time clock. With this clock 4 timers can be used to send IR codes at a user defined schedule. It is even possible to send IR Codes repeatedly at specific times. IR codes can e.g. be sent every morning or evening at a specific time. To use this function a NTP server must be reachable in the local network or internet.
•  Translator. The IR Database can also be used to translate IR Codes.
•  Switching power supply Allowing a wide supply voltage of 8-16V DC.
•  2nd IR Receiver to learn and measure all Carrier frequencies
•  Serial Bus. The serial Bus includes drivers, protection diodes for the Microcontroller and a 8 pin Mini DIN connector. The Bus has only a ground and a Data line. The protocol of the serial bus including clock and collision detection is coded in the firmware of the Microcontroller.
It can be used with baudrates off 4,800, 9,600, 19,200 and 38,400 Baud. Depending on the conditions the length can be up to 50 - 80m. Only digital data is transmitted on the serial bus - that makes it very noise insensitive.
Each module has got an unique address and can be addressed indipendently.
•  8 IR Outputs . 8 Outputs for external IR LEDs (3,5mm plug). Each output can be controlled individually. This allows to control up to 8 similar devices from the same vendor.
•  4 Relay Outputs / Analog Inputs. 4 Switch outputs with integrated low power reed relays. The relays can be controlled either via software or IR. Different modes (Toggle, On, Off, Pulse). Each of this outputs can also be used as an analog input. To connect external sensors an integrated aux. supply of +5V is available.
•  Wake On LAN: With the Wake On LAN function a PC connected to the network can be woken up using a selectable IR Code. Of course that will only work with a PC and OS that supports Wake On LAN.
•  Firmware. All modules have got an integrated bootloader. This Bootloader allows later upgrades of the firmware of the modules using a small programm. When there are upgrades or bug fixes the firmware can be upgraded by the customer within a few minutes. Of course the LAN and the IR Firmware are user upgradeable
•  IP Functions The TCP/IP stack supports all important services.
- DHCP to assign IP Addresse
- Integrated Webserver for configuration purposes
- New: Send IR Codes via HTTP Call (only with IRDB)
- Sending and Receiving of IR commands via TCP or UDP
- New: Send IR Codes via UDP ASCII String (only with IRDB)
•  Software. The IRTrans Ethernet is supported by the IRTrans Windows / LINUX Software and by the iRed Software on the Mac.
•  Assembly. The IRTrans are entirely build using modern SMD technology. This assures reliable operation and a very small footprint.
•  Certification. All IRTrans Modules are certified according to CE and FCC regulations and can be used worldwide.

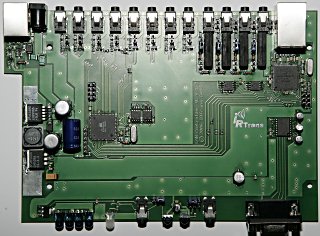

View of the PCB of the IRTrans LAN Controller XL
